Why Is My Immunofluorescence (IF) Signal Weak or Absent?
Immunofluorescence Troubleshooting · Signal Optimization Guide
Immunofluorescence (IF) is a powerful technique for visualizing protein expression and subcellular localization. However, weak or completely absent fluorescence is one of the most common problems researchers encounter.
A poor IF signal does not necessarily indicate that the target protein is not expressed. Factors such as fixation, permeabilization, antibody selection, fluorophore performance, and imaging parameters can all affect fluorescence intensity.
This guide summarizes the most common causes of weak or absent IF signals and provides practical solutions to help optimize your experiment.
Problem
After completing the staining procedure:
- No fluorescence signal is observed.
- Fluorescence is much weaker than expected.
- Positive control samples also show little or no signal.
- Cell morphology appears normal, but target staining is absent.
Possible Cause 1: Low Target Protein Expression
The target protein may be expressed at very low levels or only under specific biological conditions.
What to check
- Is the target protein expected to be expressed in your cell type?
- Is expression dependent on cell cycle, stimulation, or treatment?
- Has expression been confirmed by published studies or other assays?
Solutions
- Include a positive control cell line or tissue.
- Stimulate cells if target expression is inducible.
- Increase image exposure time without saturating the signal.
- Consider signal amplification methods if expression is extremely low.

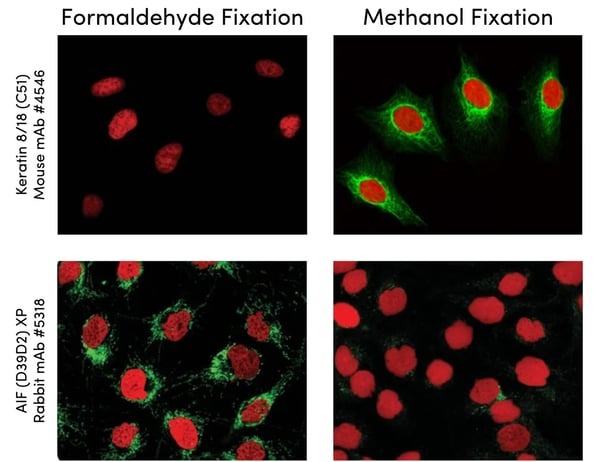

Possible Cause 2: Improper Fixation
Fixation preserves cellular structure but can also mask epitopes or damage fluorescent proteins if inappropriate conditions are used.
What to check
- Was paraformaldehyde or methanol used?
- Was fixation time too long?
- Is the fixation method recommended for your target protein?
Solutions
- Use fixation conditions recommended for the antibody.
- For most intracellular proteins, 4% paraformaldehyde for 10--15 minutes is a common starting point.
- Methanol fixation may be more suitable for certain cytoskeletal proteins but can reduce antigen recognition for others.
- Avoid over-fixation, which may decrease antibody accessibility.
Possible Cause 3: Inadequate Permeabilization
Intracellular targets require sufficient permeabilization for antibodies to enter the cell.
What to check
- Was permeabilization performed?
- Was the detergent concentration appropriate?
- Is the target protein intracellular or membrane-associated?
Solutions
- Use Triton X-100 or Tween-20 at appropriate concentrations.
- Reduce detergent concentration if membrane proteins are being examined.
- Optimize permeabilization time to preserve cell morphology.
Possible Cause 4: Primary Antibody Performance
An unsuitable or improperly diluted primary antibody is a frequent cause of poor fluorescence.
What to check
- Is the antibody validated for immunofluorescence?
- Has the antibody been stored correctly?
- Was the recommended dilution used?
Solutions
- Use antibodies validated specifically for IF.
- Optimize antibody concentration through titration.
- Incubate overnight at 4°C if stronger staining is required.
- Avoid repeated freeze--thaw cycles.
Possible Cause 5: Fluorophore or Secondary Antibody Problems
Weak fluorescence may result from fluorophore degradation or an incompatible secondary antibody.
What to check
- Is the secondary antibody compatible with the primary antibody species?
- Has the fluorophore been protected from light?
- Is the fluorophore appropriate for your microscope?
Solutions
- Verify host species compatibility.
- Protect fluorescent reagents from prolonged light exposure.
- Store fluorophore-conjugated antibodies according to the manufacturer's recommendations.
- Use fluorophores with excitation and emission spectra matched to your microscope filter sets.
Possible Cause 6: Incorrect Imaging Settings
Sometimes the staining is successful, but microscope settings prevent the signal from being detected.
What to check
- Laser power
- Detector gain
- Exposure time
- Filter configuration
- Objective lens
Solutions
- Increase detector gain or exposure time appropriately.
- Verify that the correct excitation laser and emission filters are selected.
- Use a high numerical aperture objective for dim samples.
- Image a positive control sample to confirm instrument performance.

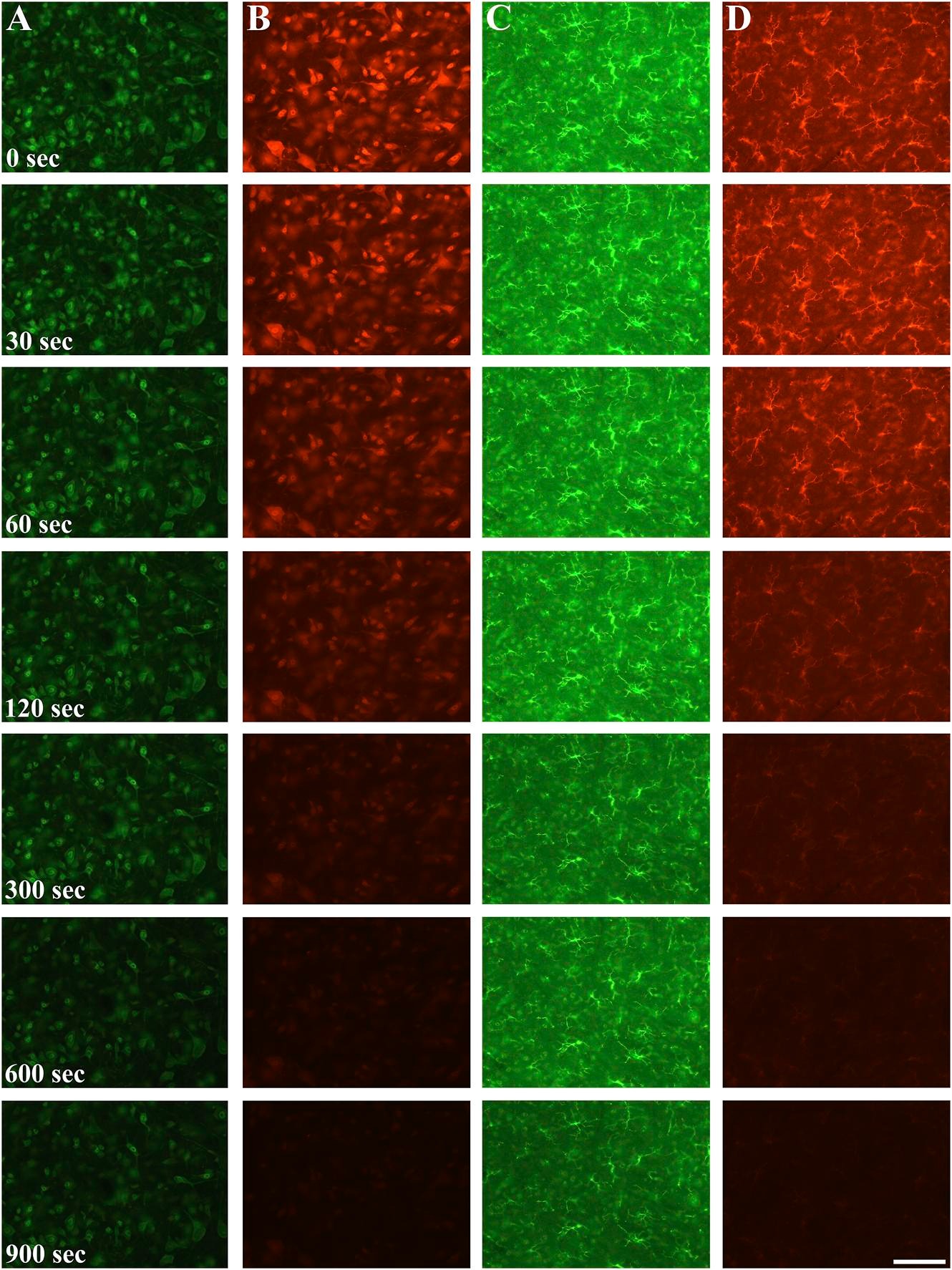

Possible Cause 7: Photobleaching
Fluorescent dyes gradually lose signal after repeated or prolonged illumination.
What to check
- Was the sample exposed to room light for extended periods?
- Were multiple images acquired from the same field?
Solutions
- Minimize light exposure during staining and imaging.
- Use antifade mounting media.
- Acquire images as quickly as possible.
- Reduce laser intensity whenever feasible.
Quick Troubleshooting Checklist
| Observation | Most Likely Cause | Recommended Action |
|---|---|---|
| No fluorescence in all samples | Imaging or antibody problem | Verify microscope settings and antibody performance |
| Positive control is negative | Reagent failure | Check antibodies and fluorophores |
| Very weak fluorescence | Low antigen expression or antibody concentration | Optimize antibody dilution and imaging parameters |
| Good DAPI staining but no target signal | Antibody or permeabilization issue | Optimize antibody incubation and permeabilization |
| Signal disappears during imaging | Photobleaching | Use antifade mounting medium and minimize light exposure |

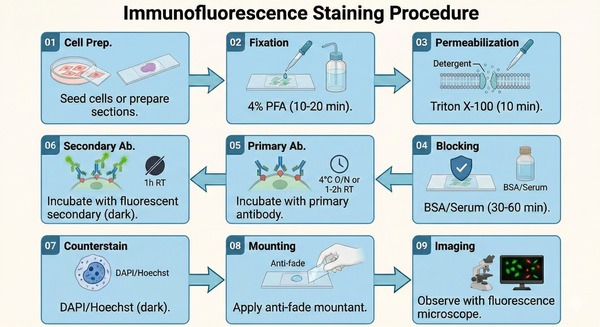

Best Practices for Reliable IF Staining
Consistent immunofluorescence results require optimization throughout the experimental workflow.
To improve staining quality:
- Use antibodies validated for immunofluorescence.
- Optimize fixation and permeabilization for each target protein.
- Include both positive and negative controls.
- Protect fluorescent reagents and stained samples from light.
- Match fluorophores to the microscope's excitation and emission settings.
- Standardize imaging parameters when comparing different samples.
Following these best practices will help improve signal intensity, reduce variability, and ensure reproducible fluorescence imaging.
Frequently Asked Question
Q: My DAPI staining looks perfect, but I cannot detect my target protein. What does this mean?
Strong DAPI staining indicates that the cells were successfully fixed and mounted, but it does not confirm successful antibody staining. In this situation, the most likely causes are an unsuitable primary antibody, incorrect secondary antibody, insufficient permeabilization, low target protein expression, or improper microscope settings. Systematically evaluating each of these factors is the most effective way to identify the source of the problem.
